TK850-HA/HAO

Machine feather

Mechanical transmission
Reinforcement structure
Smooth operation and fast production speed
Stable and accurate filling
cGMP standards
Easy replacement of different tube sizes, simple operation

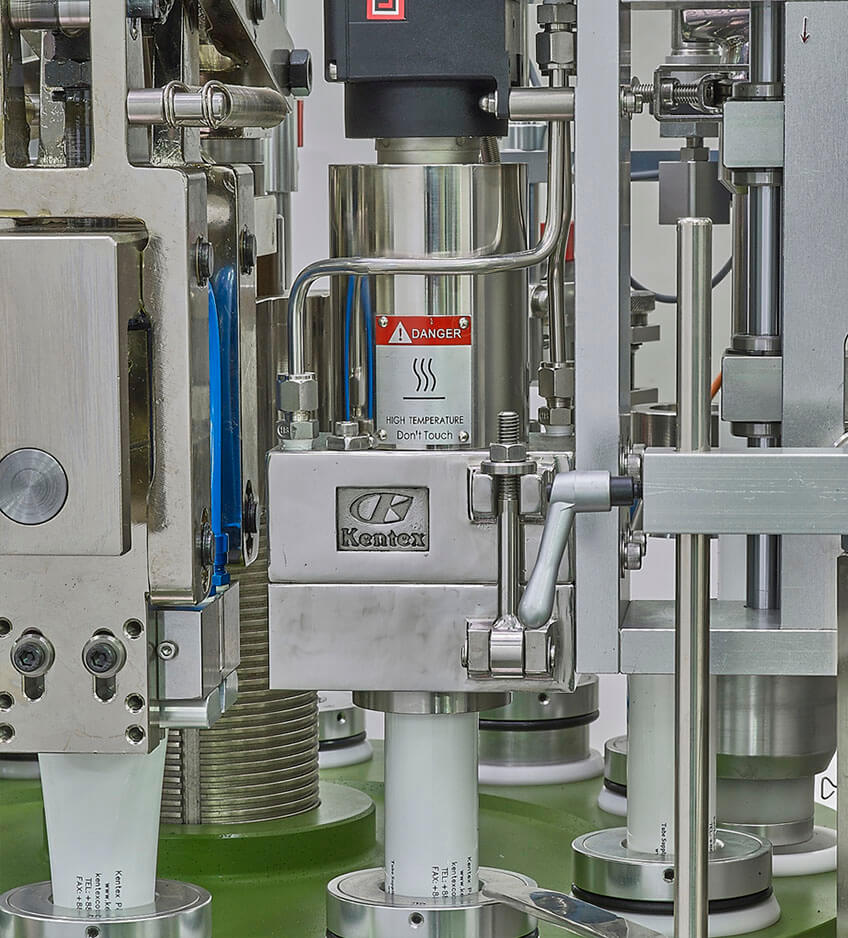

Hot air sealing mechanism is used to ensure the quality of products in the tube
Multiple sealing styles

Specifications

Application

PE & Laminated Tube

Speed

Max.60 tubes / min

Tube DIA.

ø10-ø50 tube length including cap 230mm

Filling volume

2 – 320 ml

Filling accuracy

±0.5% (base on 100ml)

Main motor

2HP ( 1.5KW )

Weight

Net.850kgs /Gr1100kgs

Air compressor

6 bar

Air consumption

800 L / min

Application

Pharmaceutical

Ointment, hair dye

Cosmetics

Face Cleanser, Lotion, Mask, Lip Gloss

Chemical

SILICONE, toothpaste

Food

Chocolate Sauce, Wasabi Sauce, Tomato Sauce

Hose type

Plastic tube / laminated tube

Product Range

Low, medium and high viscosity products

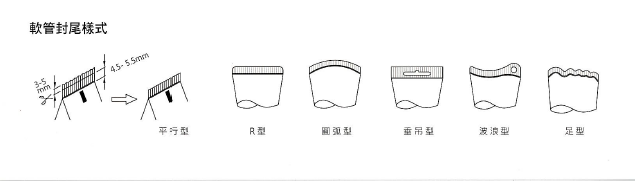

Trimming style
